IP65 Force Torque Sensor With High Precision Load Cell Strain Gauge

  • 1
  • 2
  • 3

Brand Name : tecsis

Model Number : F9844

Place of Origin : China

MOQ : 10pcs

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 20,000pcs per month

Delivery Time : Stock product:3~5 working days , No stock:10~35 days

Packaging Details : Standard: carton

Product Name : F9844

Type : Column

Material : Stainless steel/Alloy steel

Customized : Acceptable

Capacity : 200Nm~800Nm

OEM/ODM : Acceptable

Protection class : IP65

Usage : Torque force measurement

Contact Now

IP65 Force Torque Sensor With High Precision Load Cell Strain Gauge

Features :

  • Model:F9844
  • Capacity: 200Nm~800Nm
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Stainless steel or Alloy steel( optional)
  • Delicate structure
  • Static torque sensor

Description:

Static torque sensor with metal foil strain gauge technology and compact structure.

It is easy to install, and it will be more stable to measure the torque force.

Application:

Mainly used for static, non-continuous rotational torque force measurement.

Technical parameters:

Specifications

Technique

Rated output

2.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.25% F.S.

Total error

0.25% F.S.

Temp. effect on output

0.2% F.S. / 10ºC

Temp. effect on zero

0.2% F.S. / 10ºC

Input impedance

400±20Ω

Output impedance

350±5Ω

Recommended excitation

5~10V

Maximum excitation

15V

Compensated temp. range

- 10~40ºC

Operation temp. range

- 20~80ºC

Safe overload

120% F.S.

Ultimate overload

150% F.S.

Cable size

Ø5×3000mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);

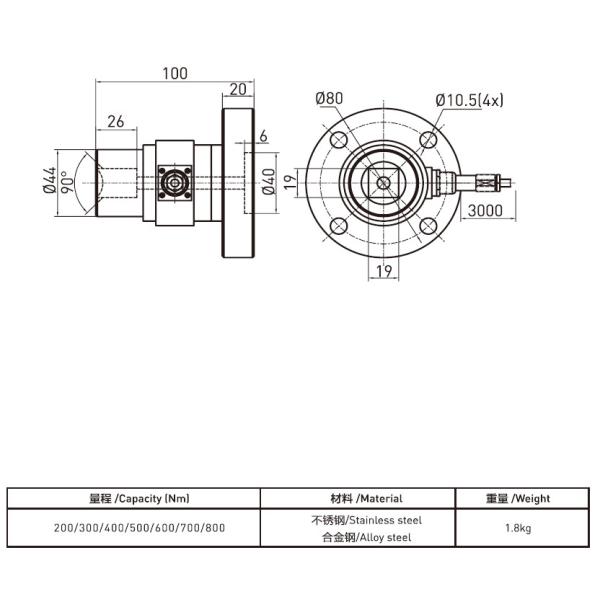

Size and capacity:

IP65 Force Torque Sensor With High Precision Load Cell Strain Gauge

Load Direction:

IP65 Force Torque Sensor With High Precision Load Cell Strain Gauge

Schematic Wiring Diagram :

IP65 Force Torque Sensor With High Precision Load Cell Strain Gauge

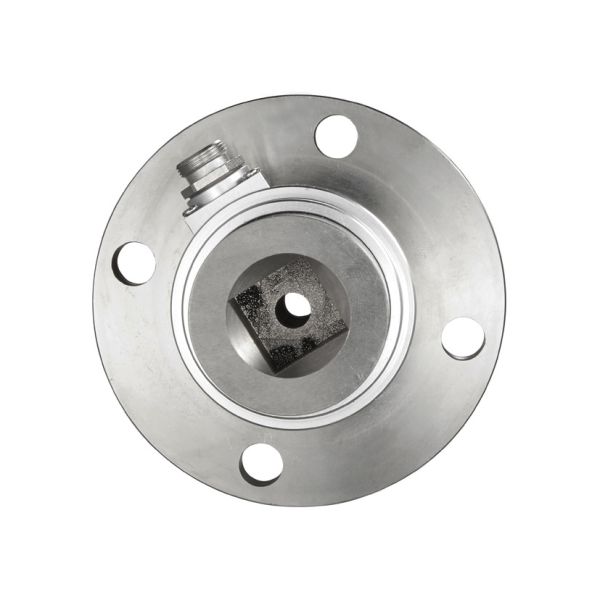

Product Details:

IP65 Force Torque Sensor With High Precision Load Cell Strain GaugeIP65 Force Torque Sensor With High Precision Load Cell Strain GaugeIP65 Force Torque Sensor With High Precision Load Cell Strain Gauge
